Product introduction：

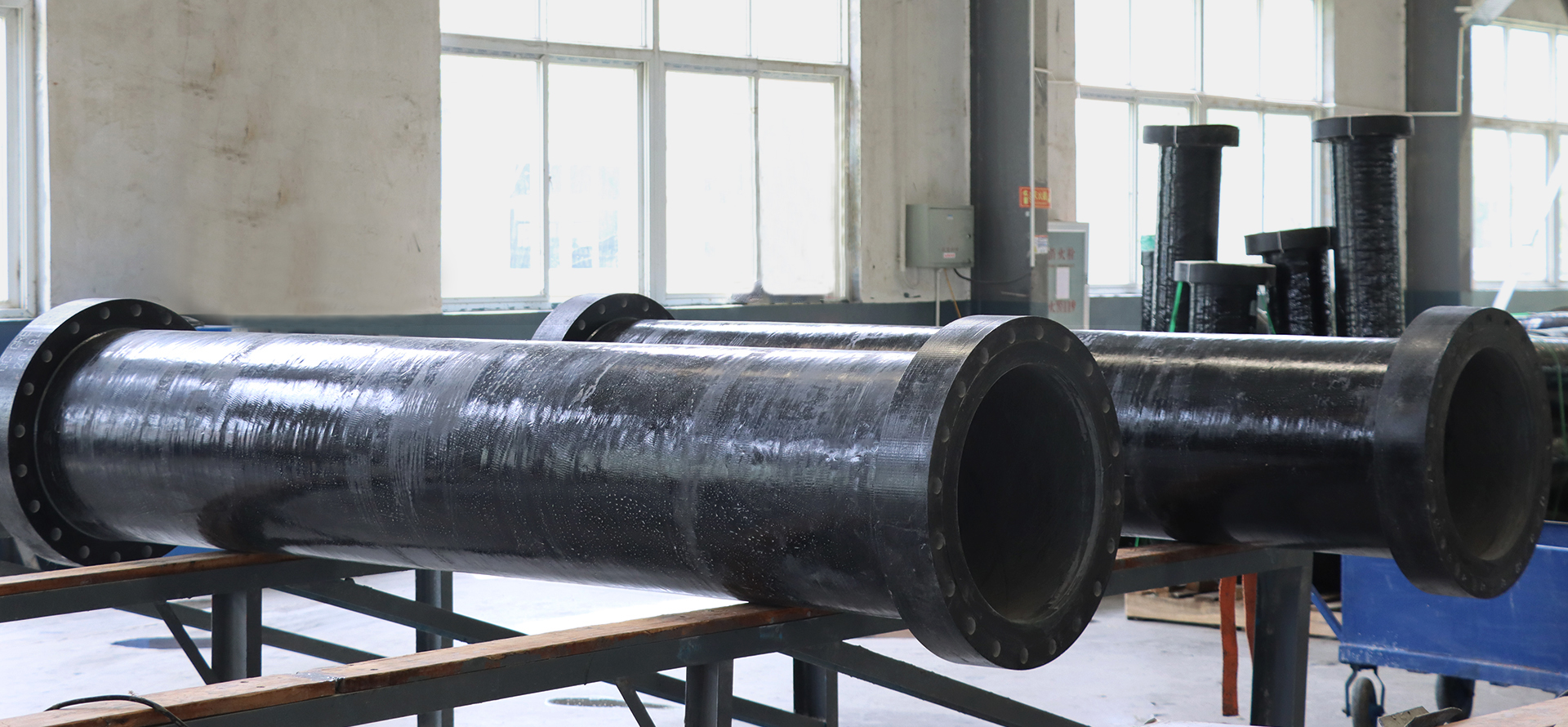

Offshore Platform and marine pipe is manufactured using high strength fiber-glass and epoxy resin by special winding technology.

Diameter Range：

25mm~1000mm（1″~40″）

Rated Pressure Range：

≤1.6Mpa

Max. Operating Temperature：

120℃

Fire Resistance：

Ocean Pipe and Fittings are fully qualified for IMO Level 3 fire endurance,when a higher degree of fire resistance is necessary, the pipe is supplied with a unique reinforced “Fire Jacket”.

Conductive Pipe：

Ocean Pipe and Fittings are supplied with conductive arbon fibers and carbon powder, that can meet the higher antistatic requirements.

Characters：

◇ Light weight, easy installation and transportation.

◇ High specific strength, reducing the weight of the offshore

◇ Platform and the marine.

◇ Low friction coefficient, no-scale, excellent hydraulic characteristic.

Application：

◇ Firewater Systems   ◇ Bilege Piping

◇ Salt Water Supply Lines   ◇ Fresh water Lines

◇ Cooling Water      ◇ Sanitary Liners

◇ Waste Lines     ◇ Scuppers

◇ Potable Water    ◇ Sounding Tubes

◇ Process Lines     ◇ Vent Lines

◇ Ballast Piping     ◇ Drains

◇ Sprinkler Systems   ◇ Conduit

◇ Cargo Lines

Raw materia：

The main materials include the reinforced fiber-glass from PPG company and Owens Coming company and the epoxy resin from the American DOW company and the domestic large enterprises.

Effectively audit operator in process：

Pipe is manufactured using computer-controlled equipment, so that it can meet industry’s ever more exacting needs for quality products and services, it is also certificated with ISO 9001.

Acceptance Control：

Each pipe will have the pressure test by using the automatic press machine, in order to make sure all the pipes and fittings are qualified.

Note：

The company reserves the right to change the specifications and technical data and the instructions and graphic materials. The data is only a general introduction rather than some kind of guarantee.
