GRE High Pressure Fiberglass Pipe

FRP screen tube is a new product which is designed and developed with the combination of the low pressure pipe and and the actual application in oilfield by Ocean Technology.

Product description Technical performance indicator Physical chemistry

Product introduction:

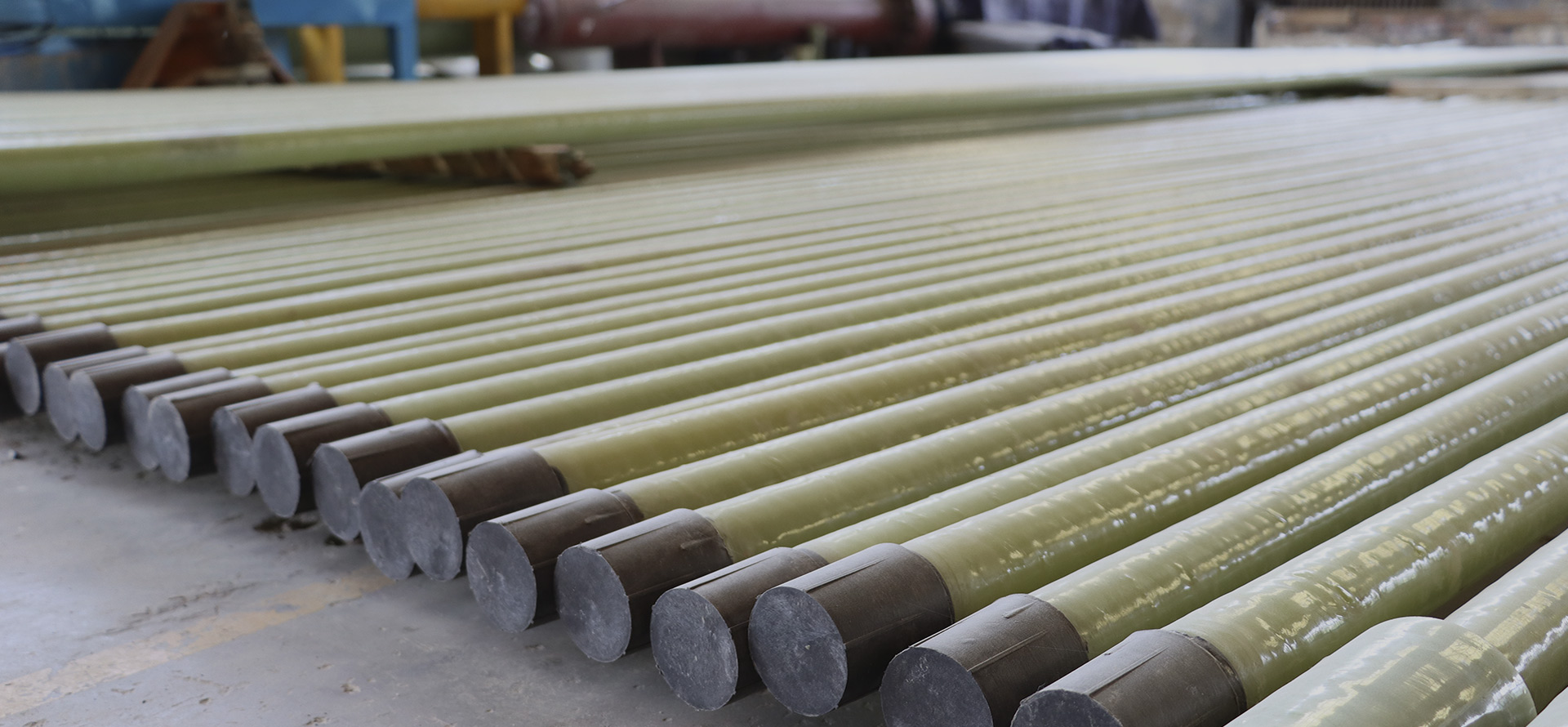

FRP screen tube is a new product which is designed and developed with the combination of the low pressure pipe and and the actual application in oilfield by Ocean Technology. The product is made of the high strength fiberglass and epoxy resin by winding technology.

Diameter range:

38mm-200mm(1.5〞- 8〞)

The highest working temperature:

100℃

Products characteristic:

◇ Excellent high-pressure resistant, corrosion resistant properties and has long service life.

◇ Light weight suits the convenience of transportation and installation.

◇ The thread joint makes good sealing property.

◇ Small friction coefficient, no dirt deposition inside pipe, excellent hydraulic characteristics.

Applications:

◇ Salt or fresh water supply lines

◇ Waste lines

◇ Firewater lines

◇ Crude oil and natural gas lines

◇ Petroleum chemical lines

◇ Pipeline connected to the tank or other systems

◇ Oil gathering line

◇ Mixed water line

◇ Desalted water equipment

Raw material:

FRP screen tube for the high-pressure pipe and fittings are PPG fiberglass and OC fiberglass products. The epoxy resins are DOW product or other domestic larger enterprise products.

Production Process Control System:

The process of manufacturing the FRP screen tube is controlled by the Hi-tech automatic filament-wound production lines and followed the ISO 9001standard. Reducing the influenceof artificial factors on the product quality.

Inspection Control System:

Each pipe need to be done the hydrostatic pressure test, so that each pipe can be qualified before entering the market.

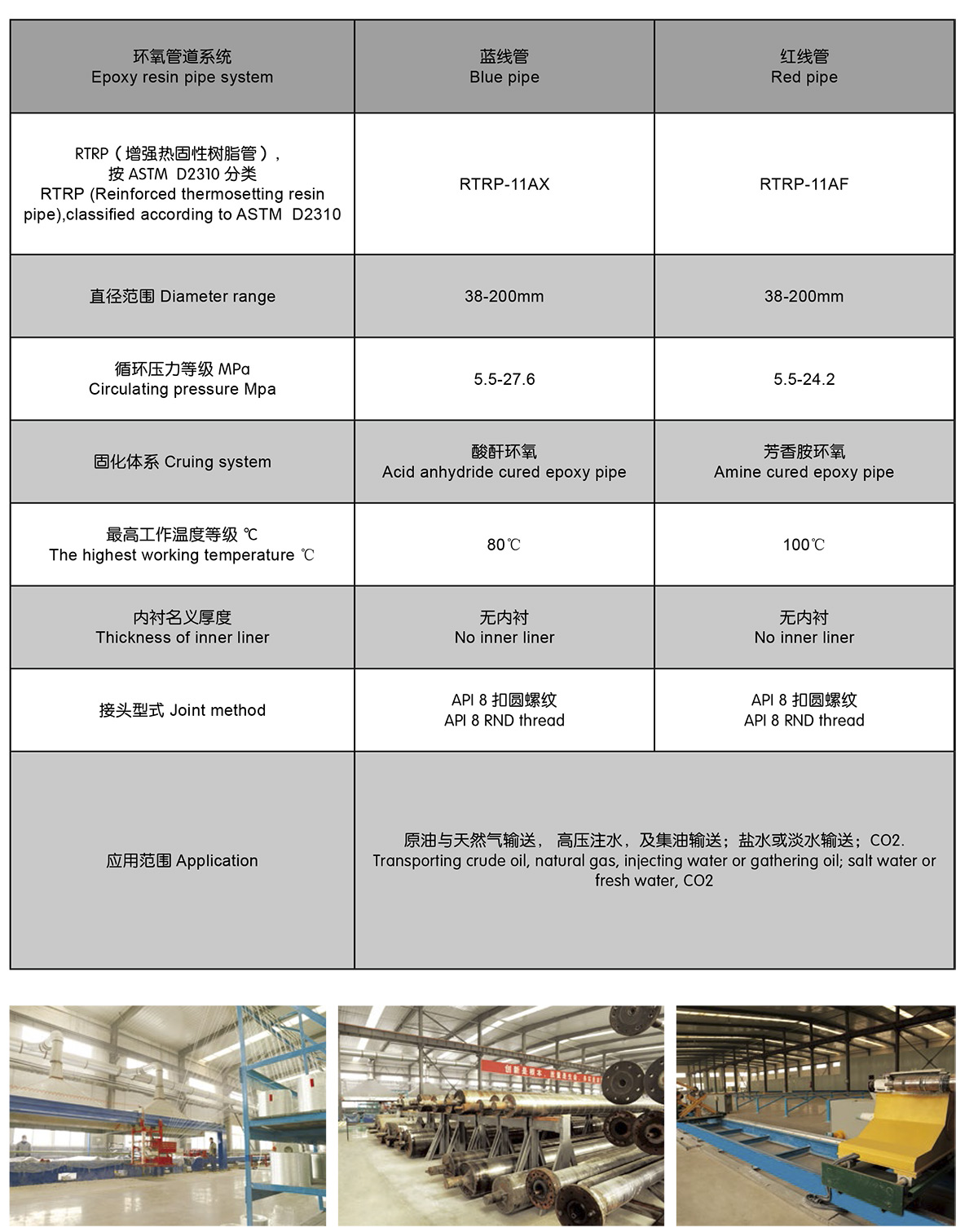

Specification:

OCEAN TECHNOLOGY retains the right to revise the product data and the graphs. This manual is a just general introduction, which does not mean any guarantee.
