Product introduction：

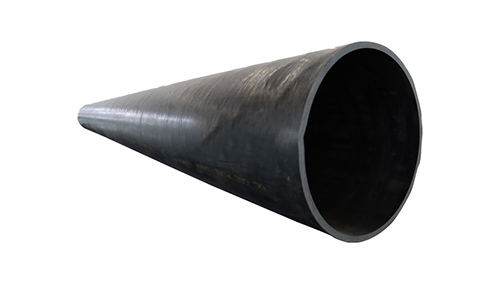

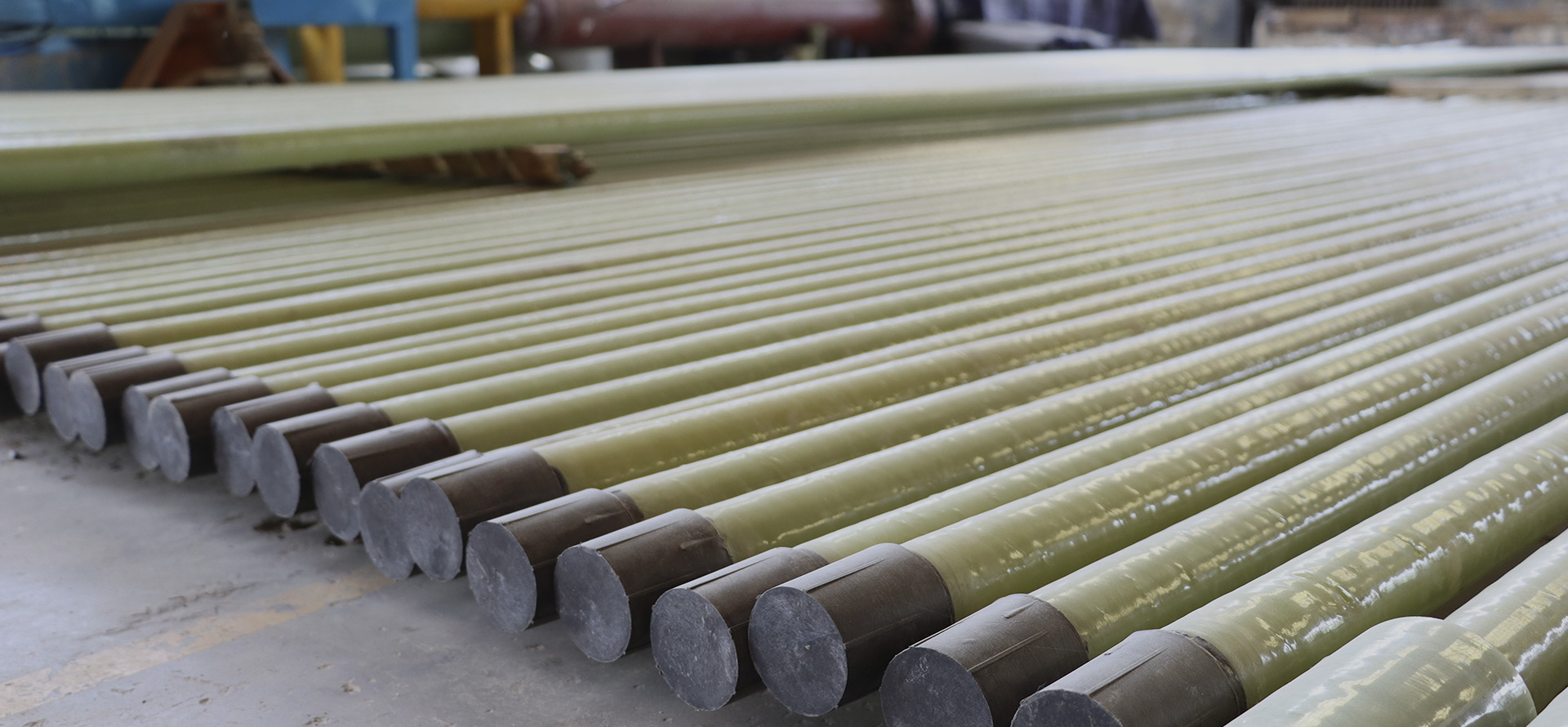

Our high pressure GRE pipe(Glassfiber Reinforced Epoxys) is designed and developed with the high strength fiberglass and epoxy resin by winding technology.

Diameter range：

38mm-200mm（1.5〞- 8〞）

Working pressure range：

3.5MPa-25MPa

The highest working temperature：

100℃

Products characteristic：

◇ Excellent high-pressure resistant, corrosion resistant properties and has long service life.

◇ Light weight suits the convenience of transportation and installation.

◇ The thread joint makes good sealing property.

◇ Small friction coefficient, no dirt deposition inside pipe, excellent hydraulic characteristics.

Applications：

◇ Salt or fresh water supply lines

◇ Waste lines

◇ Firewater lines

◇ Crude oil and natural gas lines

◇ Petroleum chemical lines

◇ Pipeline connected to the tank or other systems

◇ Oil gathering line

◇ Mixed water line

◇ Desalted water equipment

Raw material：

The production of our high pressure GRE pipe adpots PPG fiberglass and OC fiberglass products. The epoxy resins are DOW product or other domestic major enterprises' products.

Production Process Control System：

The process of manufacturing the high-pressure GRE pipe is controlled by the Hi-tech automatic filament-wound production lines and follows

the ISO 9001 standard, which reduce the influenceof artificial factors on the product quality.

Inspection Control System：

Each GRE pipe must be proceed in the hydrostatic pressure test, to qualify each one before entering the market.

Specification：

OCEAN PIPE TECHNOLOGY retains the right to revise the product data and the graphs. This manual is a just general introduction, which does not mean any guarantee.
